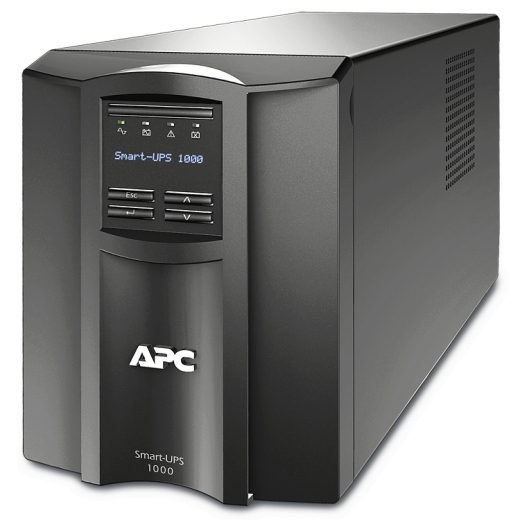

SMT1000C Features Key Features 100% Output power capacity 700Watts / 1.0kVA Output Connections (8) NEMA 5-15R (Battery Backup) Nominal Output Voltage 120V Nominal Input Voltage 120V Input Connections NEMA 5-15P Cord Length 1.8meters APC Smart-UPS 1000VA LCD 120V with SmartConnect Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. Includes: USB cable, User manual Cold-start capable Provides temporary battery power when the utility power is out. Energy meter Provides actual kilowatt hours of usage for energy conscious users. Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. High online efficiency Reduces utility costs, generates less heat. Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. Predictive replace battery date Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Single switched outlet group Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. SmartConnect Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. SmartSlot Customize UPS capabilities with management cards. Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature. Smart-UPS Features & Benefits Adaptability Adjustable voltage sensitivity Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications. Adjustable voltage-transfer points Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation. Manageability LED status indicators Quickly understand unit and power status with visual indicators. Audible alarms Provides notification of changing utility power and UPS conditions. Network manageable Provides remote power management of the UPS over the network. USB connectivity Provides management of the UPS via a USB port (not available on all models). Serial connectivity Provides management of the UPS via a serial port. Availability Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature. Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances. Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power. Boost and Trim Automatic Voltage Regulation (AVR) Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models). Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. Disconnected battery notification Warns when a battery is not available to provide backup power. Safety Safety-agency approved Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. Serviceability Predictive failure notification. Provides early-warning fault analysis ensuring proactive component replacement. Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) Resettable circuit breakers Enables a quick recovery from overload events. Marketing features Save time with easy and convenient remote accessibility Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities. Peace of mind that comes with full equipment compatibility and reliability of a leader Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards. Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold. Avoids costly power problems by keeping your IT equipment and data safe and available Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems Smarter productivity with ability to tailor to your specific application needs Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications. Product Distribution Aruba, Barbados, Bermuda, Bahamas, Canada, Costa Rica, Dominican Republic, Ecuador, Guatemala, Honduras, Haiti, Jamaica, South Korea, Mexico, Nicaragua, Panama, Puerto Rico, El Salvador, Trinidad and Tobago, United States, Venezuela, U.S. Virgin Islands Technical Specifications Print Download Output Max Configurable Power (Watts) 700Watts / 1.0kVA Output Voltage Distortion Less than 5 % Output Frequency (sync to mains) 50/60 Hz /- 3 Hz Sync to mains Other Output Voltages 110, 125 Topology Line interactive Waveform type Sine wave Transfer Time 6 ms typical : 10 ms maximum Input Input frequency 50/60 Hz /- 3 Hz Auto-sensing Input voltage range for main operations 75 – 154 Adjustable, 82 – 144V Number of Power Cords 1 Other Input Voltages 110, 125 Batteries & Runtime Battery type Lead-acid battery Typical recharge time 3hour(s) Replacement Battery RBC6 Expected Battery Life (years) 3 – 5 RBC Quantity 1 Battery Charge Power (Watts) 88Watts Battery Volt-Amp-Hour Capacity 264 Runtime View Runtime Graph View Runtime Chart Efficiency View Efficiency Graph Communications & Management Interface Port(s) SmartSlot, USB Control panel Multifunction LCD status and control console Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays Available SmartSlot™ Interface Quantity 1 Surge Protection and Filtering Surge energy rating 680Joules Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 Physical Maximum Height 219MM, 21.9CM Maximum Width 171MM, 17.1CM Maximum Depth 439MM, 43.9CM Net Weight 20.1KG Shipping weight 22.64KG Shipping Height 330MM, 33.0CM Shipping Width 330MM, 33.0CM Shipping Depth 590MM, 59.0CM Color Black Units per Pallet 12.0 Environmental Operating Temperature 0 – 40 °C Operating Relative Humidity 0 – 95 % Operating Elevation 0 – 3048meters Storage Temperature -15 – 45 °C Storage Elevation 0 – 15240meters Audible noise at 1 meter from surface of unit 41.0dBA Online thermal dissipation 175.0BTU/hr Conformance Approvals CSA C22.2 No 107.1, CULus, ENERGY STAR V2.0 (USA), FCC part 15 class A, ICES-003, UL 1778 Equipment protection policy Lifetime : $150000 Standard warranty 3 years repair or replace (excluding battery) and 2 years for battery Sustainable Offer Status RoHS Compliant
