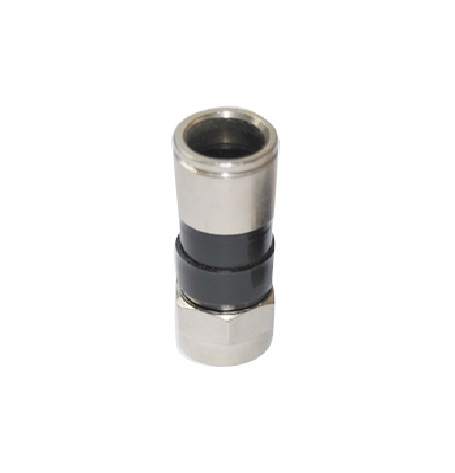

Product Specifications Bandwidth:0MHz to 3GHz Impedance:75Ohms Return Loss:Minimum -30 dB to 3GHz Insertion Loss: LESS THAN 10db to 3GHz Shielding Effectiveness:Ehanced by 25dB Operating Temperature:-40° F to 140°F(-40°C to 60°C) Cable Retention:45lbs minimum Meets or exceeds all SCTE Specifications Characteristic impedance 75Ω Temperature range -65~ 165°C Frequency range DC~1GHz Working Voltage ≤170V Center conductor retention force ≥0.2 N Vibration 100m/s2  (10~500Hz) Conductor resistance Center Conductor ≤ 10 mΩ Outer Conductor ≤ 5 mΩ Durability Mating cycles ≥500 Withstanding voltage ≤500V rms Voltage Standing Wave Ratio Straight ≤1.20 Right angle ≤1.30   Parts Name Material Plating Material And Plating Body Brass Nickel plated Pin contact Brass Gold or silver plated Resilient contact Tin bronze Gold or silver plated Insulators PTFE – Gaskets Silicon rubber – Crimp ferrules Copper alloy Nickel or gold plated Applicable standard IEC 60169-24 Drawing :
