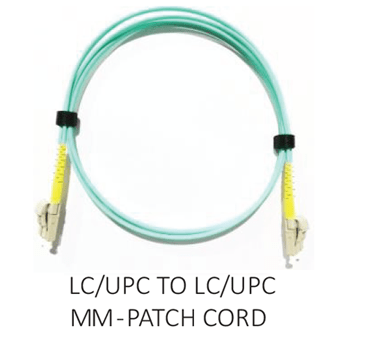

Description Description Datacom offers wide range of standard patch cords as well as custom-made configuration on demand. Patch cords are available in Single Mode OS2 ITUG657 A2/ 652.D and Multi Mode OM3/OM4 categories. All Patch cords are with tight buffered construction and both ends and are pre-terminated with either SC or LC connectors come in simplex or duplex cords. Patch cord cable jacket constructed with LSZH-rated material. Low insertion loss Angled Physical Contact (APC), ultra Physical Contact (UPC) straight cord or combined hybrid type cords with different lengths are available. Datacom Patch cords are available in various lengths, users can configure fibre type (SM or MM) category and length rage from 1 meter to 30 meters. Datacom multimode patch cords shall meet an optical return loss equal to or greater than 25 dB per mated pair, and single-mode equal to or greater than 50 dB for UPC polish. Standard insertion loss shall not exceed 0.4 dB per mated pair for multimode 0.35 dB for single-mode, datacom connector exceeds the standard value. The patch cords shall be compliant with ANSI/TIA-568.3-D standard. Application Application FFTH, Telecoms CO, Datacenters, CATV LAN & WAN. LAN, PON & Optical CATV, Local ring net. Optical fiber communication system. Optical fiber test equipment Optical fiber sensor. Provide interconnect and cross-connect of applications in entrance facilities, telecommunications rooms, data centers, at the desk and network applications to interconnect pre-terminated casseties in main distribution, horizontal distribution, and equipment distribution areas. Industry and military application. Features Features Low insertion loss. High return loss. Excellent Repeatability, exchange- eability,wearability and stability. Environmentally Stable. Available in duplex and Simplex configurations. Simplex configurations available as custom. All cables 100% optically tested. Many fiber options: OS2,OM3, OM4 and OM5. All cords are pre-labeled and individually bagged. Standards Compliance Standards Compliance LSZH IEC 60332-1-2 IEC 60332-3-24, IEC 60754-1 TIA-604-3 (FOCIS-3) TIA-604-5 (FOCIS-10) TIA 568.3-D,ROHS complied Ordering Information Ordering Information Simplex LSZH Patch cord DC-PC-SCAP-09-‘xx’S DC-PC-LCAP-09-‘xx’S DC-PC-SCLCAP-09-‘xx’S DC-PC-SCSC-09-‘xx’D DC-PC-LCLC-09-‘xx’D DC-PC-SCLC-09-‘xx’D DC-PC-LCLC-50-‘xx’D-‘aa’ DC-PC-SCSC-50-‘yy’D-‘aa’ DC-PC-SCLC-50-‘yy’D-‘aa’ Hybrid APC Patch cords SC-LC DC-PC-9DSCALCULZ-‘xx’ DC-PC-9DLCASCULZ-‘xx’ DC-PC-9SSCALCULZ-‘xx’ DC-PC-9SLCASCULZ-‘xx’
