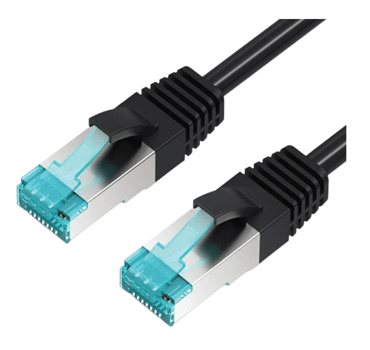

Description Description DATACOM Cat6 /Cat6A classEA Shielded Ultra Slim Patch Cord is a 5.4±0.4mm diameter pair cable terminated with 50-micron gold plated modular plugs. Ultra Slim cords are constructed of 28 AWG shielded, twisted pair, solid, LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. DATACOM Ultra Slim cord plug latch prevents snags and provides easy release, saving time on frequent moves and Changes. Cat6 and Cat6A LSZH cords are varieties of length and 6 colors are available. Application Application Ethernet 10BASE-T, 100BASE-T (Fast Ethenet),1000BASE-T(Gigabit Ethernet), 10GBASE-T (10Gigabit Ethernet over limited distances as specified in the industry. 10GBASE-T standards). 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM. Digital video and broadband/baseband analog video. Voice over Internet Protocol (VoIP). 10GBASE-T Ethernet /Data center I/O Consolidation / Data center server virtualization / Backbone aggregation / Parallel processing and high-speed computing. Features Features Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA electrical performance requirements for frequencies up to 500 MH(Cat6A). Meets ANSI/TIA-1096, Supports IEEE 802.3af/802.3at (48 cables in a bundle) and 802.3bt type 3 and type 4 (24 cables in a bundle) PoE applications. 100% performance tested for wire map, NEXT and return loss, Centered de-embedded plug, Integral pair manager, Patented tangle-free latch. Conductor contacts plated with 50 micron gold for superior performance. 4 pair 28 AWG stranded copper wire Pre-terminated with RJ45 plugs. 10G Performance when installed as a complete Datacom 6A Shielded System. Standards Compliance Standards Compliance ANSI/TIA-568.2-D and ISO 11801 Class E IEC 60332-1-1 ROHS compliance: Compliant PoE compliance: Rated for 1000 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4 Flammability rating: LSZH compliance Ordering Information Ordering Information Datacom Cat6 28 AWG Stranded Shielded Patch Cord, LSZH Datacom Cat6A 28 AWG Stranded Shielded Patch Cord, LSZH
