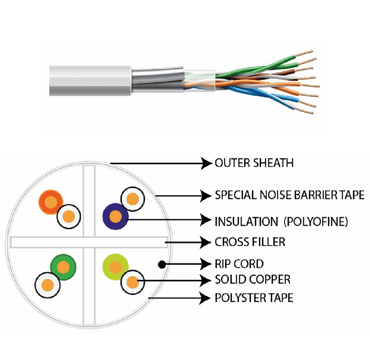

Description Description Datacom 6A unshielded LSZH Cable is specifically designed to support high-speed data network applications such as 10GBASE-The innovative design includes a Special noise barrier tape and polyester tape, which provides excellent Alien Crosstalk defense. The low diameter of the cable allows for a higher cable density in containment, reducing cost. DATACOM Cat 6A U/UTP cable shall have a nominal diameter of 7.0mm. The cable is constructed of 23-gauge copper conductors. It consists of 8 Copper Conductors, 2 conductors twisted together to form a pair. 4 Pairs are laid up together. Cat 6A Cables support up to 10 Gbps Data rates, PoE , and are the ideal choice for high-speed LAN Solutions. Application Application 100BASE-T through 10GBASE-T Ethernet. Power over Ethernet (PoE)- IEEE 802.3bt Type 1 to 4. ATM and token ring. Data Center Server farm connectivity. Features Features Supports up to 500 MHz frequency. IEEE 802.3bt-2018. ANSI/TIA-568.2-D and ISO 11801 Cat 6A standard verified. No grounding or bonding required. Low overall cable diameter- 7mm (nom.). Backward compatible with legacy protocols and applications. The product is 3rd party verified to ANSI/TIA-568.2-D and ISO 11801 Category 6A standard. Standards Compliance Standards Compliance ANSI/TIA-568.2-D IEC 60603-7 IEC 60512-99-002 ISO/IEC 11801-1 CLASS E/EA IEEE 802.3BT TYPE 4 POE (4PPOE) ROHS/REACH ANSI/TIA-1096-A Ordering Information Ordering Information DC-CBL-C6A-UT-LSZH
